Tig200P Pulse DC Tig/Arc 200amp Digital Welder

  • Brand: Magnum Welders
  • Product Code: TIG200P DC
  • Availability: In Stock
  • $890.00

File Size
Flier Tig200 AC-DC.pdf 446.97KB Download

Digital Tig200P Pulse DC Tig/Arc 200amp Welder

The Digital Tig200P is a fully programmable professional DC Tig welder. Newly designed plastic front panel cover provides protection and elegance. Self-saving and recalling function on welding data. Single knob and contact control panel, precise & adjustable welding data, easy to operate.

Designed to professionally weld mild steel, stainless steel, titanium, chrome moly and copper from 0.8mm-16mm.

It has a high speed turbo fan to keep things cool and a huge 60% duty cycle @ 200amps. This welder is a heavy duty fully programmable Pulse Tig/Arc welder. Strong metal casing with shock resistant plastic casing ends.

Features:

  • LED Read Out
  • Parameter Recall
  • Up Slope/Down Slope Regulation
  • Pulse Tig
  • 2T-4T Torch Latching
  • Pulse Base Current – Pulse Frequency
  • Pulse Duty Cycle Regulation
  • Arc Starting and Stopping Current Regulation
  • Pre and Post Gas Regulation
  • Store and Recall Parameter Memory

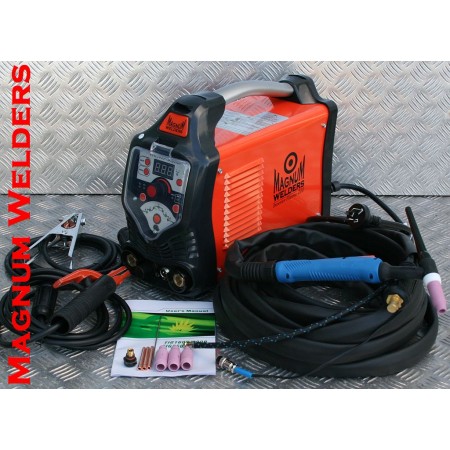

What You Get:

  • Magnum Tig200P Pulse Tig/Arc Welder
  • WP26 Tig flexi head torch with Trafimet snap on gas fitting and 8 metre lead
  • Electrode holder 3 metre
  • Earth lead and clamp 3 metre
  • Instruction manual & Spare consumables

Specifications:

Input power voltage

AC220 (single phase)+ - 15%V

Frequency

50/60

Rated Input Power capacity

6.2kva

Output current range

10-200A

Duty cycle

60% @ 200amps,

100% @ 155amps

Arc-starting

HF vibration

Efficiency

85%

Current Rise Time/Fall Time

0 - 9.9

Pre & Post Gas

0.1 - 9.9

Pulse Rate

5-50%

Pulse frequency Hz

1-20

Protection Class

IP21S

Insulation Class

F

Welding thickness

1mm-12mm

Welder Dimensions

390 x 164 x 300mm

Weight

9.5kg

Extras Available:

Tungsten Tips - Thoriated Pkt 10      $40

Regulator with bubble flow               $70

Angle Adapter                                 $40
