Cut100H IGBT Inverter Air Plasma Cutter 100amp with Pilot Arc

Magnum Welders Pty Ltd are the Professionals in Welders and Plasma Cutters.

We specialise ONLY in welders and plasma cutters and source the most reliable and best quality available.

Magnum Welders Cut100H IGBT Inverter Air Plasma Cutter 100amp with Pilot Arc

Generator safe and ideal for on-site work.

The Cut100H can be widely used in cutting carbon steel, stainless steel, alloy steel, copper and other ferrous and non-ferrous metals. It is a portable, efficient energy saving and stable machine. This is a plasma cutter only, no more need for those expensive oxy bottles, all you need is compressed air. A 3 phase machine capable of cutting up to 35mm mild steel plate.

Features:

• 2T/4T latching

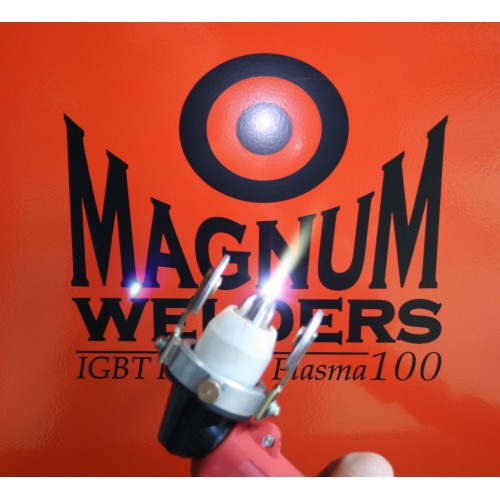

• This machine is a true Pilot Arc, no need to touch tip to the job.
• It will cut through rusty metal and painted surfaces up to 35mm for mild steel.

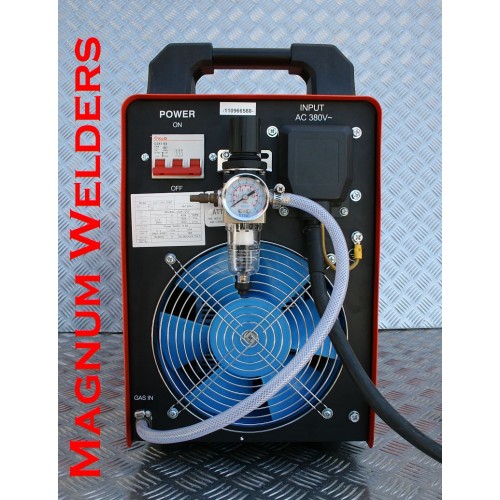

• It has a huge high speed turbo fan to keep things cool.
• The duty cycle is 60%@100amps and 100%@77amps.

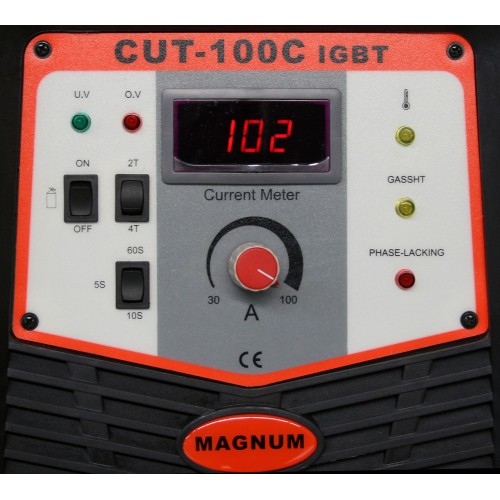

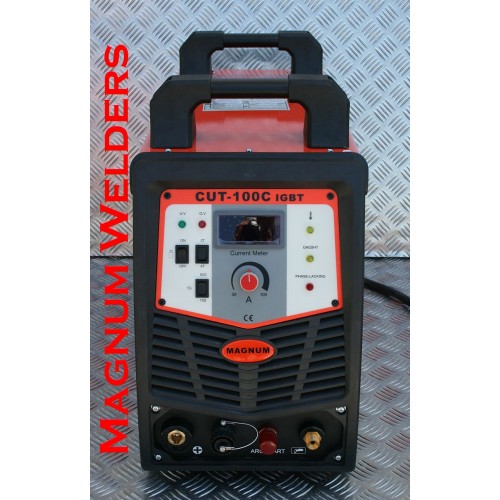

• Features a digital readout and sturdy lifting handles.

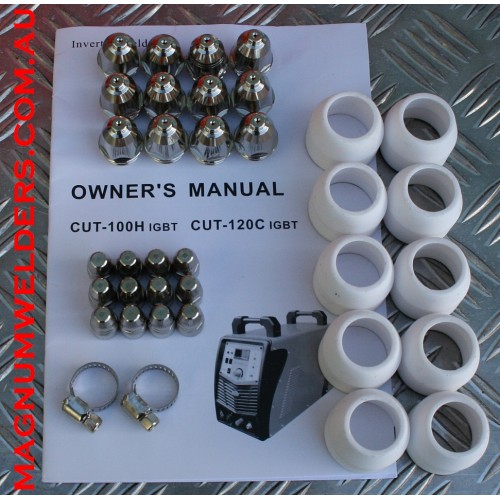

• Plasma consumables kit = 12 x Tips, 12 x Electrodes, 10 x Ceramic shrouds (saving of $116)

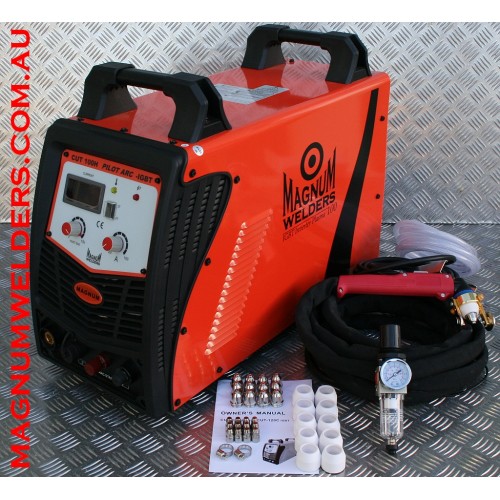

What You Get:

• Magnum Cut100H Air Plasma Cutter

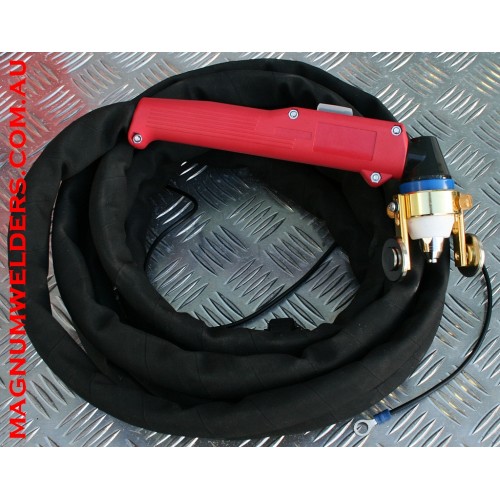

• Plasma Torch P80 series with 5 metre lead
• Roller guide fitted
• Earth Clamp with 3 metre lead
• Air Regulator and fittings
• Air Hose and fittings
• Consumables kit valued $80
• Owner’s Manual

Note: A power plug is not fitted to this 3phase

machine to allow owner the choice of plug.

Specifications:

Input Voltage                     AC380V ± 15%

Input Power                       15 kva

No Load Voltage                 300V

Current Range                   30-100amps

Rated Output Voltage          120V

Rated Duty Cycle                60% @ 100amps

100% @ 77amps

Efficiency                          60%

Power Factor                     0.93

Insulation Class                  F

Protection Class                 IP23

Arc Starting                       Pilot Arc (non Contact)

Compressor Pressure          6kg (70-80psi)

Weight                             28kg

Unit Size                           513x268x455mm

Extras:

Consumables kit = 10 x Tips, 10 x Electrodes, 5 x Ceramic shrouds $80

Tips              $4 each

Electrodes      $4 each

Shroud          $2 each
