~NEW 2023 MODEL~
Weighing in at only 12kgs the previous equivalent is 25kgs. This unit has been manufactured for Magnum Welders and is comparable in quality and performance to any larger European welder. It adopts the latest Pulse Width modulation (PWM) and IGBT Inverter technology which replaces heavy transformer technology. Thus it is characterized with a portable size, light weight and low power consumption.
The parameters of the Tig200 AC/DC on the front panel can all be adjusted continuously and steplessly via one dial, such as start current, crater arc current, welding current, base current, duty ratio, upslope/downslope time, pre/post-gas, pulse frequency, AC frequency, balance, hot start, arc force and arc length. When welding, it takes high frequency and high voltage for arc igniting to ensure the success ratio of igniting arc.
FEATURES:
- 2T/4T exchange function
- DC function for welding mild steel, stainless steel, cooper, chrome moly and non-ferrous metal materials
- AC function for welding aluminium and aluminium alloy materials
- Digital LCD display to show your current output precisely

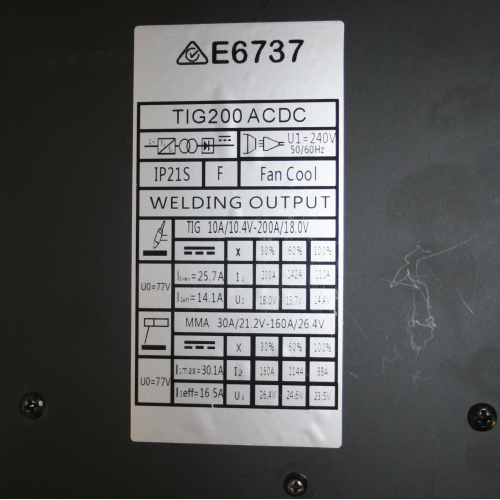

SPECIFICATIONS:
Input power voltage (v/hz) Ac240 +-15% Single Phase
Rate input power capacity - 7.2
Input current - 15amp
Rated output current - 200amp
Rated output voltage - 24v
Output current range - Tig 10-200amps, Arc 30-160amps
Duty cycle - 25°C - 60%@142Amps, 40°C - 30%@200Amps
Output voltage range - 14-18v
Power factor - 0.85
Insulation class - F
Protection class of case - IP21S
Weight – 12kg
Overall welder dimension - 400x170x290mm
WHAT YOU GET:

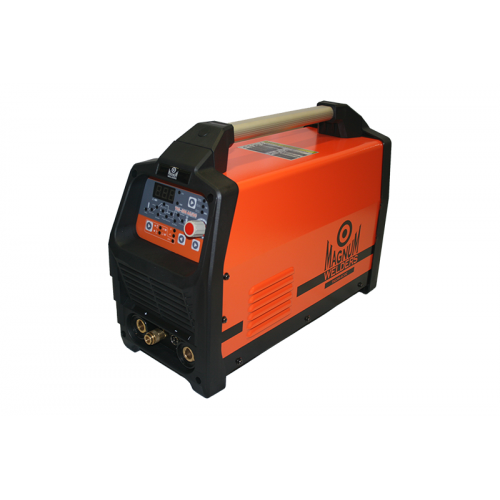

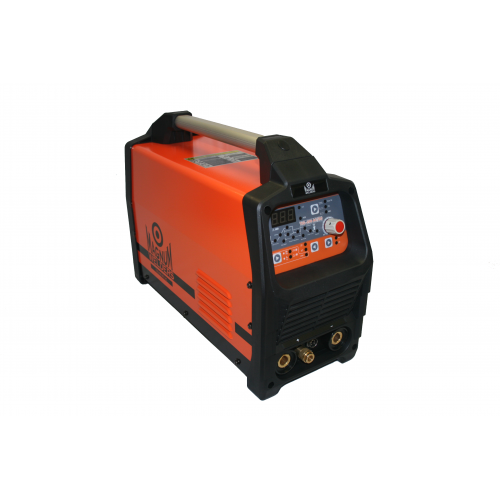

- Magnum Tig200 AC/DC

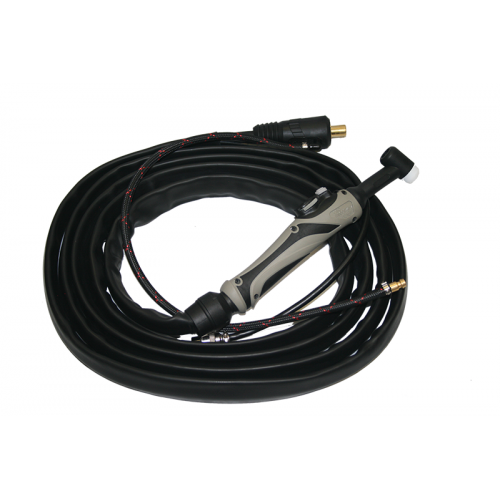

- WP26 TIG remote flexible head torch 4 metres

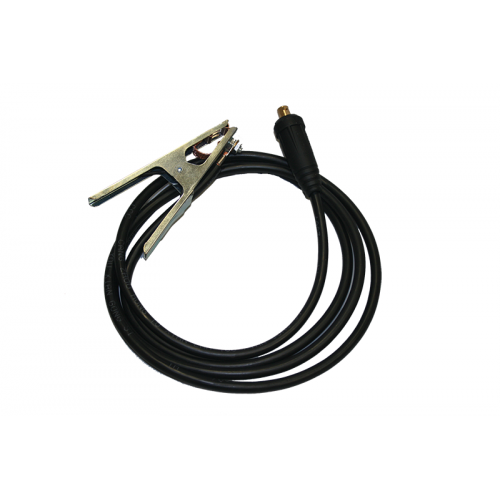

- Earth Clamp 3 metres

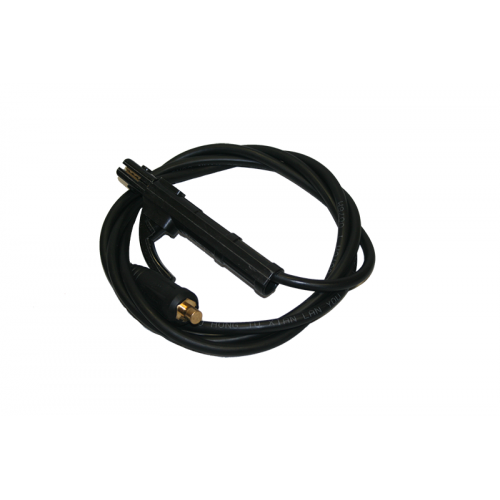

- Electrode Holder 3 metres

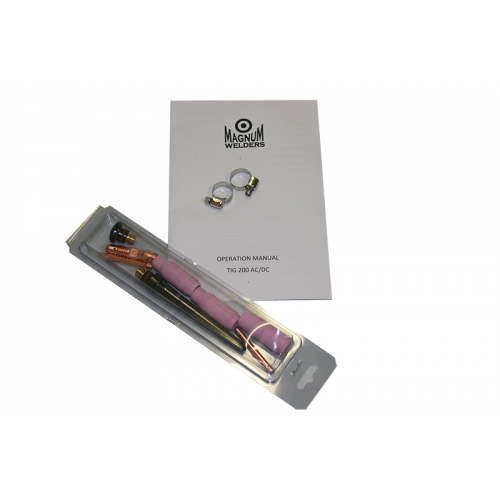

- Tig Accessories - collets (2), shrouds (3), short back, long back and tungsten

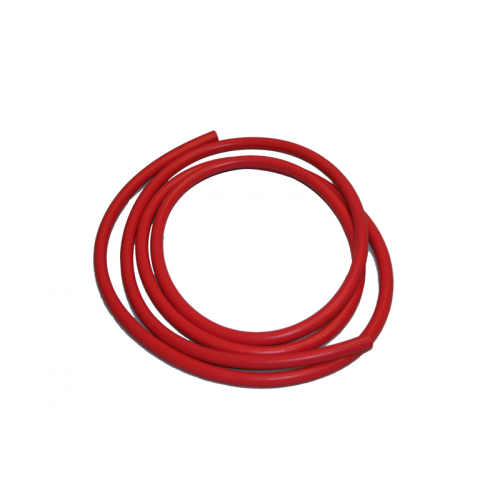

- Gas Hose 3 metres & Hose Clamp (2 pcs)
- Instruction manual
WARRANTY:
2 Years Parts and Labour
EXTRAS AVALIABLE:
Regulator $70
Regulator Angle Adapter $40
Thoriated Tungsten Tips Pkt 10 $40
Zirconiated Tungsten Tips Pkt 10 $40
Foot Control $120
